LOCKING BUSH 6MM SHAFT DIAMETER
$85.00
LOCKING BUSH 6MM SHAFT DIAMETER

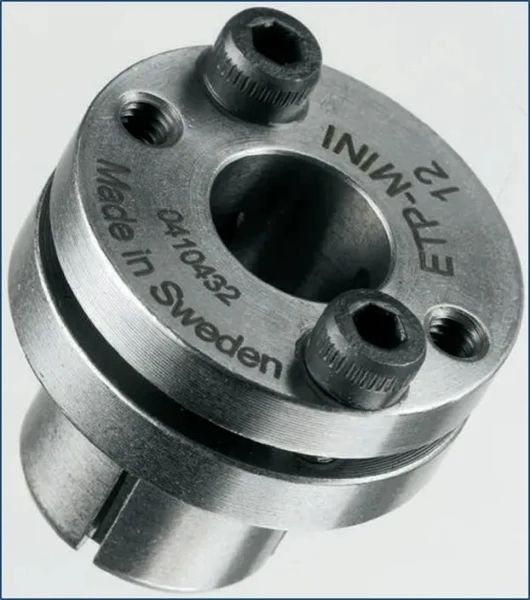

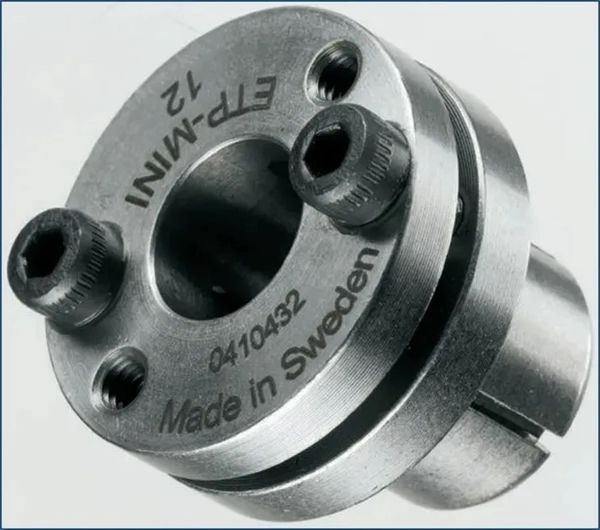

ETP Mini Locking Bush 6mm Shaft Diameter
Unique mechanical shaft to hub locking bush offering infinite radial and axial adjustment.
- Self-centering with small built-in dimensions. Fast mounting with few tightening screws. Designed for mounting of gears, pulleys, cams, sprockets etc., where more frequent removal is required
- Self-centering with good concentricity
- Fast, easy locking and unlocking with few pressures' screws
- Unique design gives more even hub pressure profile
- Ideal for applications with small diameter hubs
- H8 hub bore and K6 to H10 shaft tolerances
- Temperature range: -40 to +300°C.

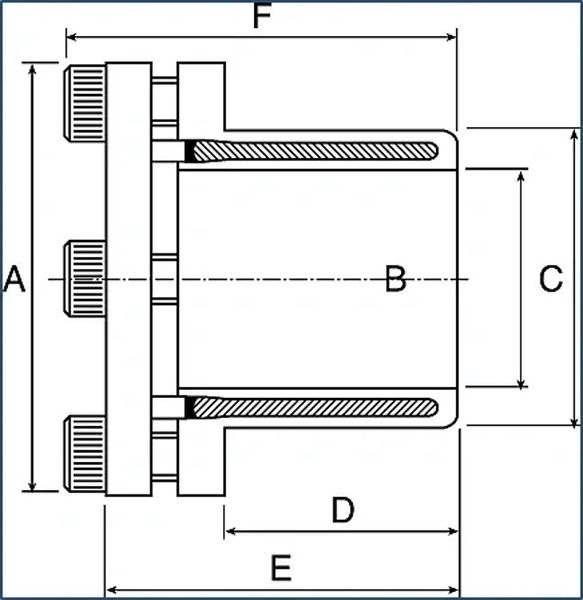

Specifications
- Shaft Diameter 6mm
- Outside Diameter 14mm
- Flange Diameter 18mm
- Length 22mm
- Rated Torque 5Nm
- Material Steel
- Minimum Operating Temperature -30°C
- Maximum Operating Temperature +85°C
